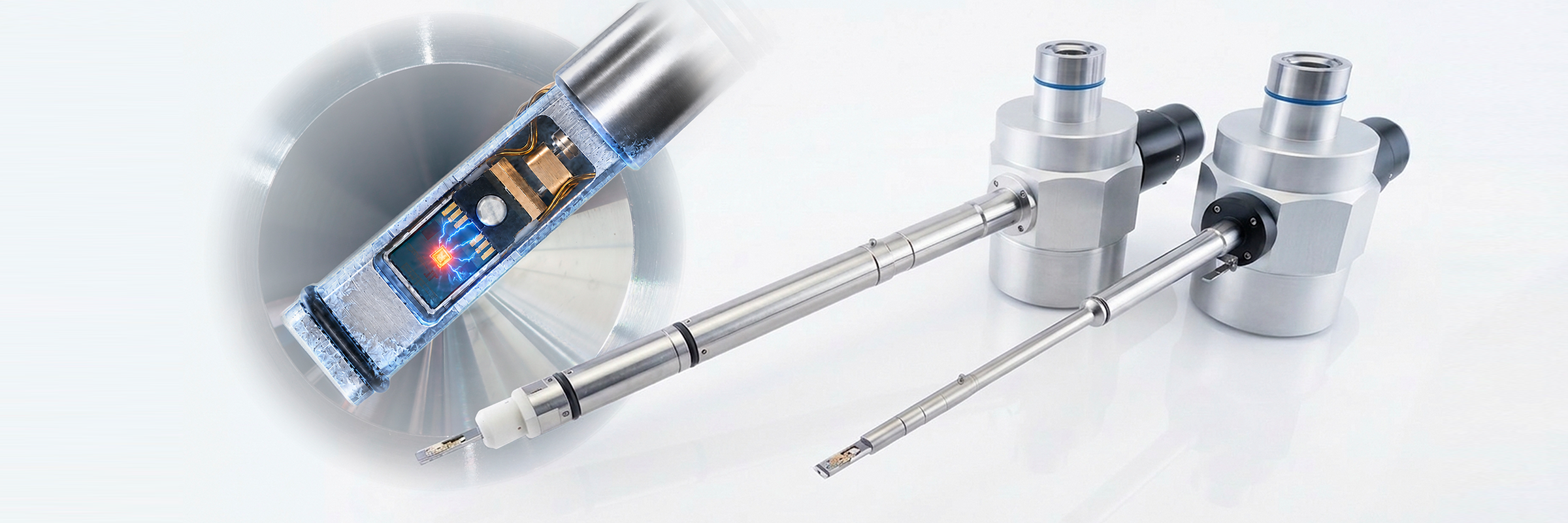

EleCryo Double tilt Vacuum Transfer Holder

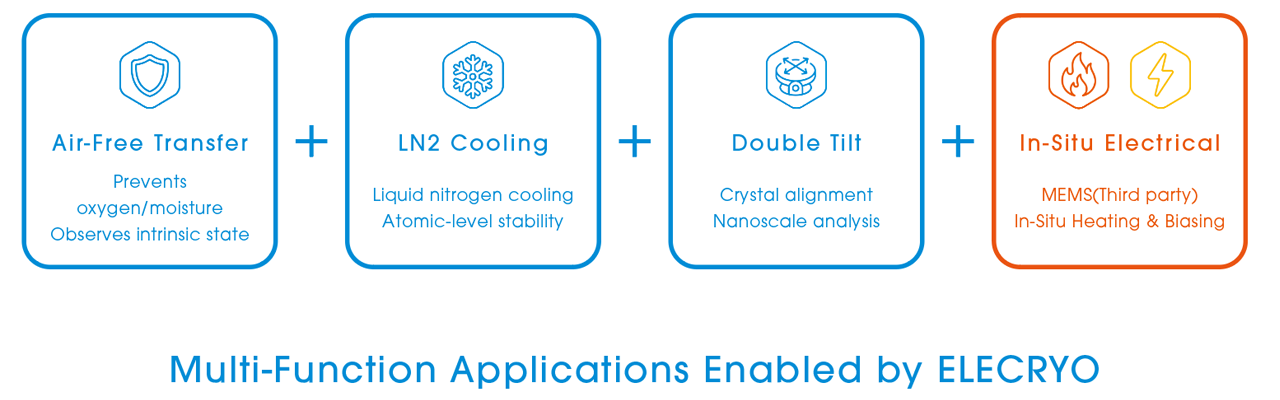

All in One Solution │ Every Function in One this Holder
LN2 Cooling -160°C │ Biasing & Heating │ Double tilt │ Vacuum Transfer
Your One-Stop Destination for All Your Research Needs.
High Resolution at -160°C data movie and data Collection
Li ion Battery application with Vacuum Transfer

Sample:Au nanoparticles
ARM 200F in Kyushu University
Factory check resolution image

Sample:(La,Li)TiO3
University of Tokyo
Dr. Ishikawa Dr. Nakayama
Prof. Shibata Prof. Ikuhara

Sample:Li NCA
Panasonic/JFCC
Nomura, K. Yamamoto, Y. Yamagishi, E. Igaki, ACS Nano 2021,15, 19806.

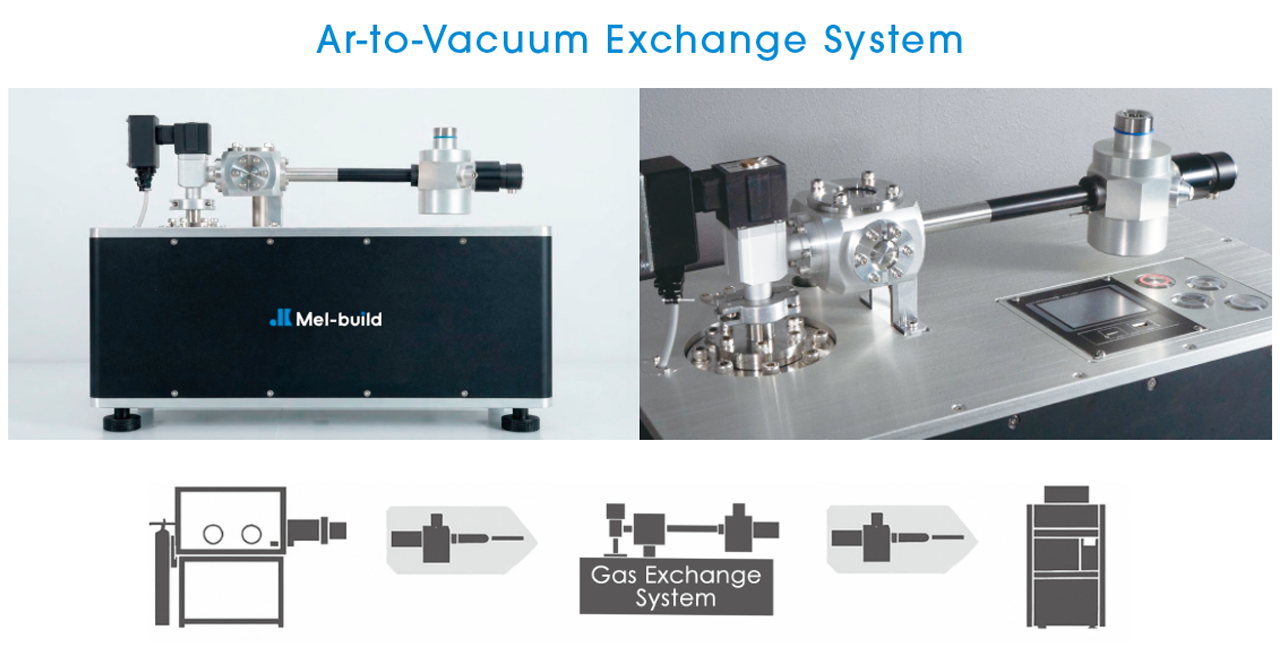

Observation possible by vacuum transfer with Cryo
-
Atomic resolution STEM image observation of LLZ(Li7La3Zr2O12),which is degraded by exposure to air(moisture) and weak to electron beam with lithium ion material, was successful. From this result, it was proved that the non-exposure(Transfer) was successful, and the crystal orientation was adjusted by Y tilt,and the electron beam damage was reduced by cooling of -160°C.
- From Cryo to Heating -
Cryo with Biasing This holder have Got You Covered
-
Our ELECRYO holder can heat up to 800℃ while cooling. Of course, you can also apply bias and retain many functions with just one.

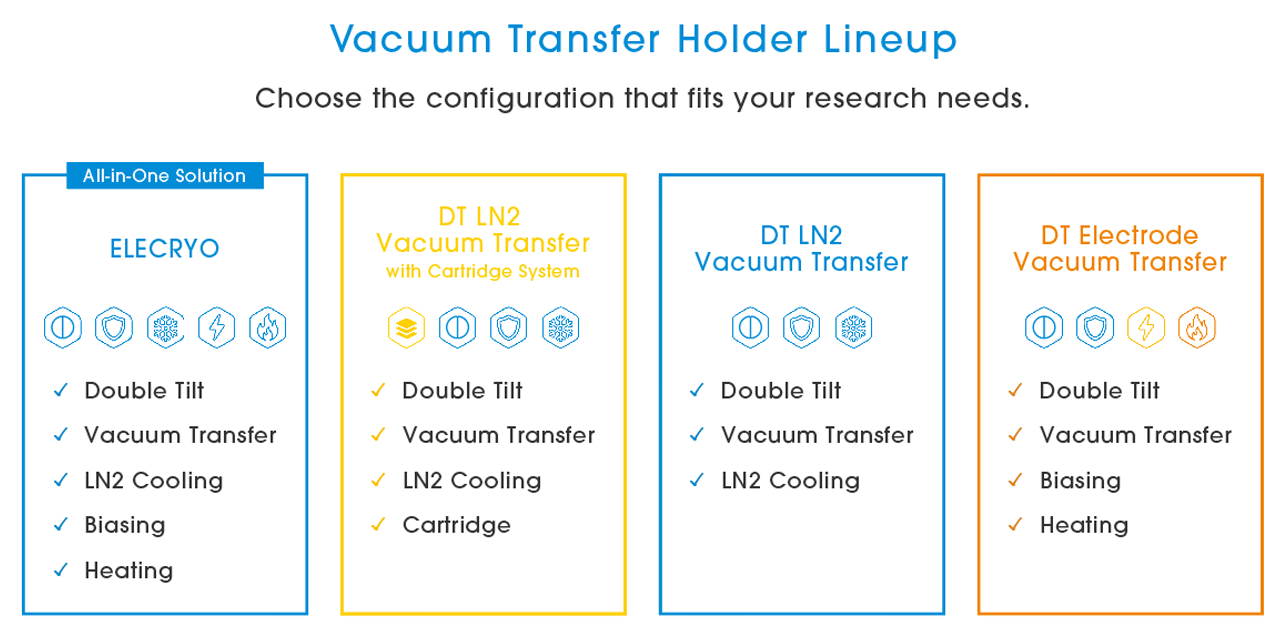

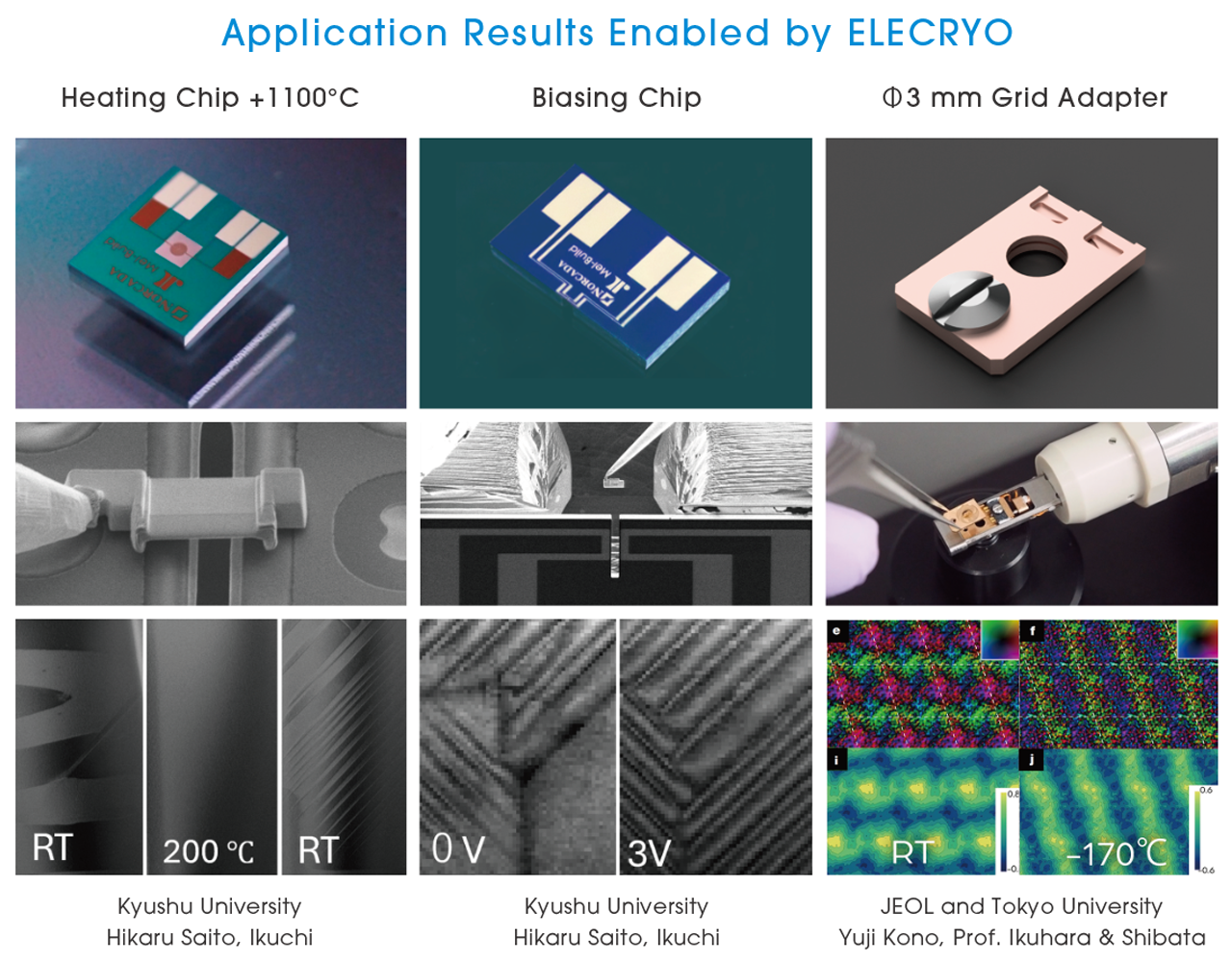

- Line up MEMS Chip & Normal Sample -
Heating Chip 1000℃
FIB Biasing Chips
Φ3mm Grid Adapter

Temp. Control Range ±30 ℃ to 1000℃
High responsiveness enables instant temperature changes, combined with the unparalleled stability of MEMS chips. By adding a cooling function, it becomes possible to transition from cooling to temperature elevation seamlessly.
Note: The controlled temperature range of the MEMS chip is from 30°C to 1000°C, while the cooling side depends on holder control."

Grade Noise Reduction Dielectrics
The Gap width narrowed by 12um(±5um)by sandwiching the
insulating film,Superior measurement quality and SNR,
in both AC and DC modes.
4 probe electpode of platinum gread
Our holder cable use of Coaxial cable.
you can choice to your high-performance power supply.

Φ3㎜ grid adapter
Typical electrical holders are integrated with MEMS chips.
However, our product features both
cryo cooling and vacuum transfer capabilities. Specifically, it is designed as a double tilt vacuum transfer holder, enabling the use of standard samples. By utilizing this adapter, all the functions of this holder can be leveraged to observe various samples seamlessly.
Reasons for high-resolution image at -160°C
We realized it with the following our special system.
Mechanical drift cancellation mechanism from our patented technology

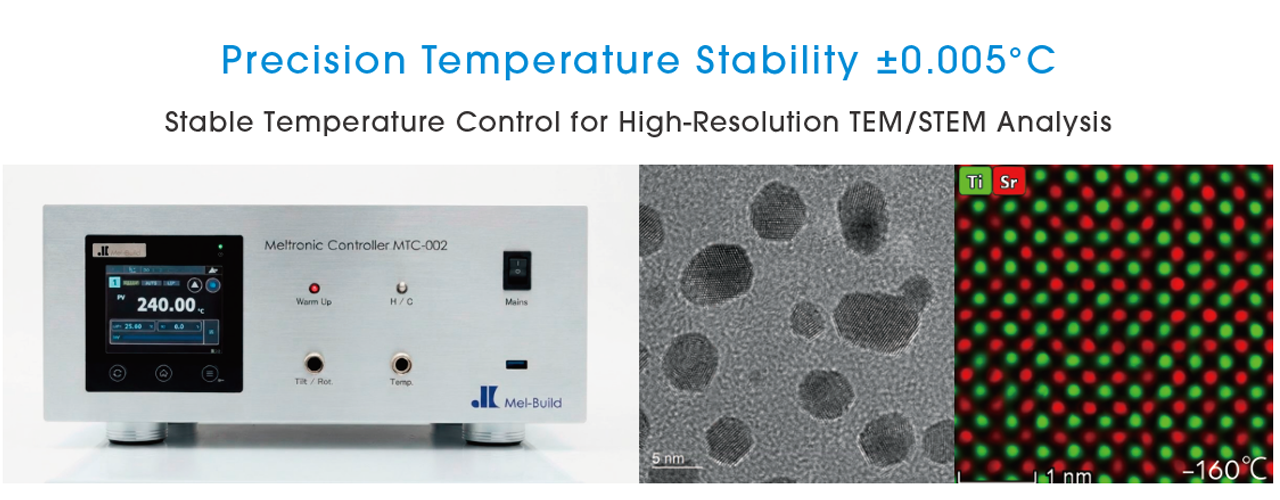

- High-precision temperature controller. Range is ± 0.005°C.
- Original Gonio cover for cryo tem holder
By making these into one system, it is possible to obtain much easier get the high resolution image than current cooling holders.
As a result, the stability during cooling has improved,so we have successfully acquired EDS column map data.
EDS analytical performance test using LN2 cooling holder:Column mapping of SrTiO3

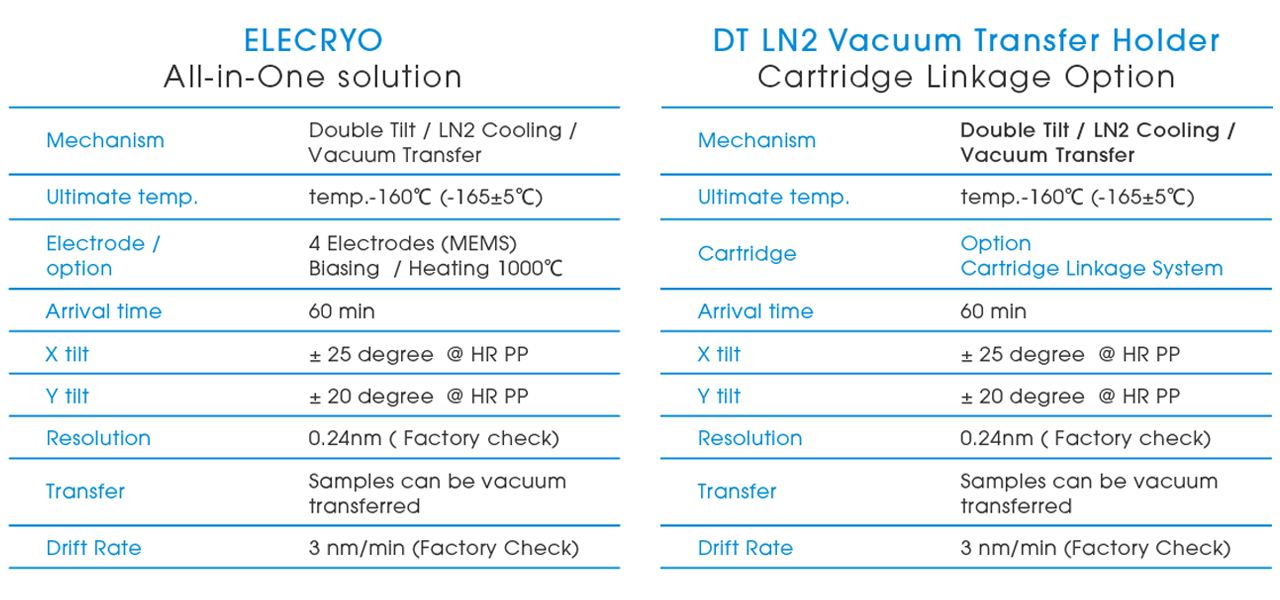

TEM holder Specification
Component | Vacuum Transfer / Double tilt / Cooling/Biasing / Heating |
Ultimate temp.※Guarantee temp. | -165±5℃ |
Arrival time | 60 min. |
Tilt Angle |
JEOL:X:± 25 degree , Y:± 20 degree @ HR PP FEI:X:± 30 degree, Y:± 20 degree @ ST PP |
Resolution | 0.24nm Au Nano Particle TEM FFT 002 observation (Factory check specification) |
Drift Rate | 5 nm/min. ※TEM room noise less than 50db |
